| AXLE | (2) 7,000# Axles w/ Quick Lubricating Hubs and Elec. Brakes |
|---|---|
| JACK | Stillwell Hydraulic Jack |
| TIRE | ST235/80 R-16 Load Range G 14 Ply Rated |
| FLOOR | 10 Gauge Smooth Steel |
| WHEEL | 16″ x 6″; HD Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | Integral with Frame (8″ I-Beam, 10#) |
| COUPLER | Adjustable 2-5/16″ 18,000# Demco EZ Latch |
| FENDERS | 9″ x 72″ 14Ga.Diamond Plate Double Square Broke |
| G.V.W.R. | 15,400# |
| ELEC. PLUG | 7-Way RV |
|---|---|
| HITCH TYPE | Bumper Pull |
| MAIN FRAME | 8″ I-Beam, 10# |
| SUSPENSION | Multi-Leaf Spring w/Equalizer |
| BED TOP RAIL | 2″ x 2″ Square Tubing |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8″ Grd. 70 w/Safety Latch Hook (2 each) |
| DUMP BODY SIDES | 48″ Tall Sides (10 Gauge) |
| G.A.W.R. (Ea. Axle) | 7,000# |
| DUMP BODY CROSSMEMBERS | 3″ Channel, 16″ Centers |
THE 14TD-14 ALSO COMES EQUIPPED WITH:
- Adjustable 2-5/16″ Demco EZ Latch Coupler
- 8″ I-Beam Frame w/Integrated Tongue
- 28″ Deck Height
- 12k Hydraulic Jack

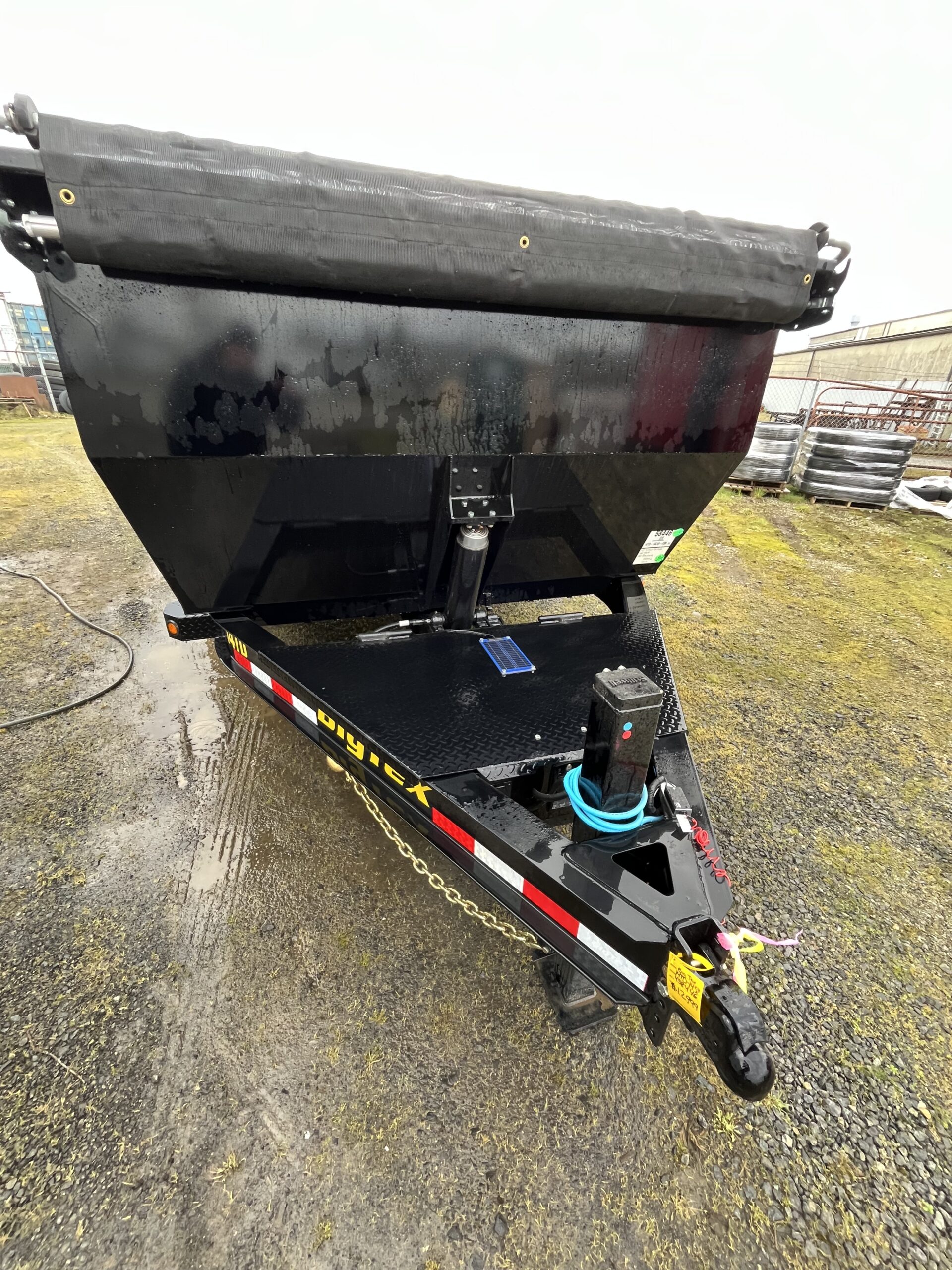

- Lockable Pump & Battery Box Mounted in Front of Bed
- 48″ Tall, 10 Gauge Sides w/Formed Channel Supports
- 10 Gauge Steel Floors & Sides
- Fully Formed Tarp Shroud on Front
- Swing Arm Tarp Kit
- J-Hooks on Sides & Rear for Tarp Control
- Stake pockets Along Sides
- Power Up Hydraulic Pump
- 12V Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Solar Charger
- Cambered Axles w/Quick Lubricating Hubs
- Forward Self Adjusting Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Brake Away System
- Zip Breakaway Cable
- Diamond Plate Fenders

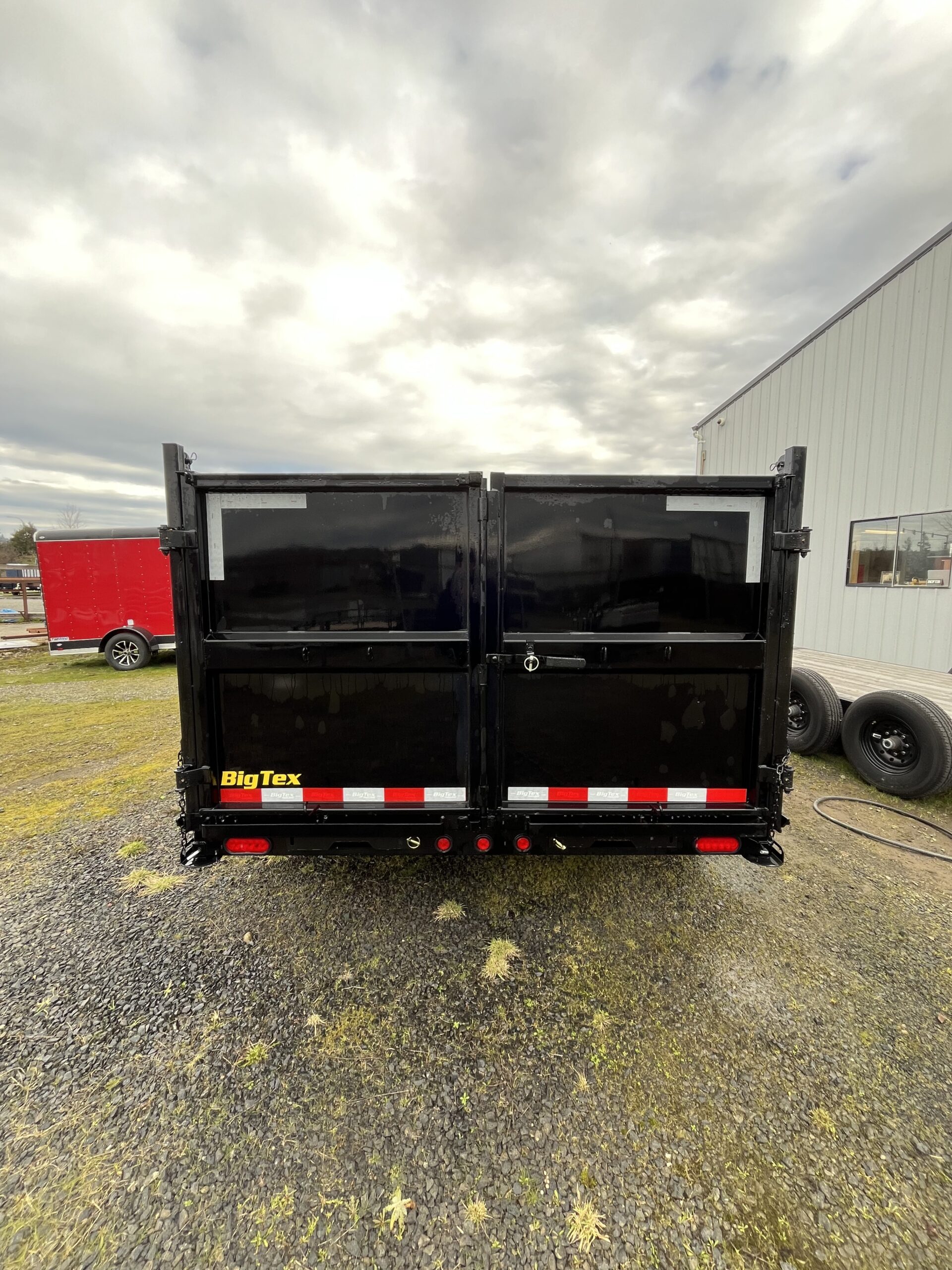

- Combo Gate (Barn Doors & Spreader Gate)
- Rear Stabilizer Stands
- (4) 1/2″ D-Rings Inside Bed to Secure Equipment
- Spare Tire Mount
- Radial Tires
- 12 ton telescopic dump cylinder
Limited quantity sale priced at $13,499 with no setup or doc fees!
